IEC 60502-1 Cables

600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1 (unarmoured)

Application:

These IEC 60502-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

ConductorsConductors shall be Round Stranded (Non-compacted or Compacted) or shaped, Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors, Class 1 to IEC 60228 can also be provided based on special request.
InsulationXLPE Insulation material and thickness shall be as per IEC 60502-1 rated for 90°C continuos operation. PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code

Colour Code (1) :
1 Core : Red or Black
2 Cores : Red, Black
3 Cores : Red, Yellow, Blue
4 Cores : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 Cores : Black Cores with White numerals
Colour Code (2) :
1 Core : Brown or Blue
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores :
Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers Inner Sheath compatible with the insulation material and the assembly is bedded with an extruded layer of PVC. Lead Sheath Extruded lead Alloy Type "E" to BS 12548. Thickness of lead shall be as per IEC 60502-1. Cables with other thickness of Lead Sheath can also be provided based on

specific request.

ArmourGalvanized Steel Wires in accordance with IEC 60502-1 or BS 6346 or BS 5467 laid

helically over PVC bedding as per requirement. Galvanized Steel Tapes applied helically over PVC bedding in accordance with IEC 60502-1

Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Parameters:

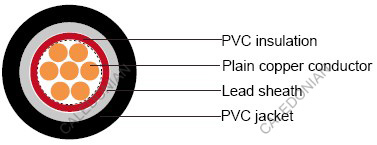

Single core(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km
1x10 rm	4	0.7	1.2	1.4	16	715
1x16 rm	5	0.7	1.2	1.4	17	825
1x25 rm	6.3	0.9	1.2	1.4	19	1025
1x35 rm	7.4	0.9	1.2	1.4	20	1150
1x50 rm	8.8	1	1.2	1.4	21	1350
1x70 rm	10.6	1.1	1.2	1.5	23	1675

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km
1x95 rm	12.4	1.1	1.2	1.5	25	2025
1x120 rm	14	1.2	1.2	1.6	27	2425
1x150 rm	15.5	1.4	1.3	1.7	29	2800
1x185 rm	17.4	1.6	1.4	1.7	31	3400
1x240 rm	20.3	1.7	1.4	1.8	35	4250
1x300 rm	22.7	1.8	1.5	1.9	37	5000
1x400 rm	25.4	2	1.6	2	42	6250
1x500 rm	28.8	2.2	1.7	2.2	46	7725
1x630 rm	30.4	2.4	1.8	2.3	48	9275

Two cores(unarmoured )

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km
2x2.5 rm	2	0.7	1.2	1.8	18	825
2x4 rm	2.6	0.7	1.2	1.8	19	925
2x6 rm	3.1	0.7	1.2	1.8	20	1025
2x10 rm	4	0.7	1.2	1.8	22	1225
2x16 rm	5	0.7	1.2	1.8	24	1500
2x25 rm	6.3	0.9	1.2	1.8	27	1925
2x35 rm	7.4	0.9	1.2	1.8	29	2300
2x50 rm	8.8	1	1.3	1.8	33	2875

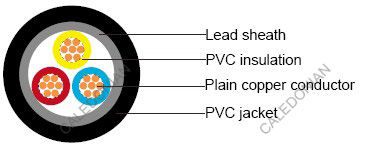

Three cores(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km
Round conductor
3x1.5 rm	1.6	0.7	1.2	1.8	17	790
3x2.5 rm	2	0.7	1.2	1.8	18	875
3x4 rm	2.6	0.7	1.2	1.8	19	1000
3x6 rm	3.1	0.7	1.2	1.8	21	1125
3x10 rm	4	0.7	1.2	1.8	23	1375
3x16 rm	5	0.7	1.2	1.8	25	1700
3x25 rm	6.3	0.9	1.2	1.8	28	2225
3x35 rm	7.4	0.9	1.3	1.8	31	2650
3x50 rm	8.8	1	1.4	1.9	35	3350
3x70 rm	10.6	1.1	1.5	2	40	4425
3x95 rm	12.4	1.1	1.6	2.1	44	5625
3x120 rm	14	1.2	1.7	2.3	49	6850
3x150 rm	15.5	1.4	1.8	2.4	54	8250
3x185 rm	17.4	1.6	1.9	2.6	59	10025
3x240 rm	20.3	1.7	2.1	2.8	67	12900
3x300 rm	22.7	1.8	2.2	2.9	73	15550
Sectoral conductor
3x50 sm	-	1	1.3	1.9	32	3000
3x70 sm	-	1.1	1.4	2	36	4000
3x95 sm	-	1.1	1.5	2.1	40	5075
3x120 sm	-	1.2	1.6	2.3	44	6175
3x150 sm	-	1.4	1.7	2.4	48	7525
3x185 sm	-	1.6	1.8	2.6	53	9125
3x240 sm	-	1.7	2	2.8	59	11650
3x300 sm	-	1.8	2.1	2.9	64	14025

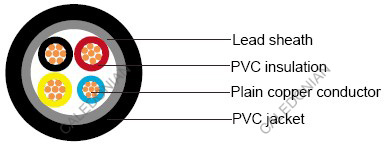

Three cores+1(unarmoured)

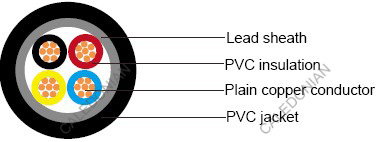

Four cores(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km
4x2.5 rm	2	0.7	1.2	1.8	19	950
4x4 rm	2.6	0.7	1.2	1.8	20	1100
4x6 rm	3.1	0.7	1.2	1.8	22	1250
4x10 rm	4	0.7	1.2	1.8	24	1550
4x16 rm	5	0.7	1.2	1.8	26	1950
4x25 rm	6.3	0.9	1.3	1.8	31	2700
4x35 sm	-	0.9	1.2	1.8	31	2800
4x50 sm	-	1	1.4	2	35	3700
4x70 sm	-	1.1	1.5	2.1	40	4950
4x95 sm	-	1.1	1.6	2.3	44	6350
4x120 sm	-	1.2	1.7	2.4	48	7750
4x150 sm	-	1.4	1.8	2.6	53	9425
4x185 sm	-	1.6	2	2.7	58	11575
4x240 sm	-	1.7	2.2	3	65	14800
4x300 sm	-	1.8	2.3	3.2	71	17900
